Linseed Oil Production Line

封面图片
pretreatment


Remove impurities such as straw and gravel from flaxseeds by using vibrating screens and specific gravity destoners, and eliminate metallic impurities with magnetic separators. If necessary, use a dryer to control the moisture content at 8%–10%. Then, heat and stir the flaxseeds in a steaming and roasting pan to bring them to the optimal temperature and humidity for pressing.

Cold pressing

Use a cold press to extract oil from the pretreated flaxseeds at a relatively low temperature (generally not exceeding 60℃). Cold pressing can maximize the retention of nutritional components in flaxseeds, such as alpha-linolenic acid and vitamin E, but the oil yield is relatively low, generally ranging from 18% to 22%.

Hot pressing

During hot pressing, first heat the pretreated flaxseeds to a temperature of 100–130℃, and then feed them into a screw oil press. The screw shaft rotates inside the pressing chamber, exerting high pressure on the materials to squeeze the oil out of the oilseeds. Hot pressing features a relatively high oil yield, which can reach 30%–35%, but some heat-sensitive nutritional components will be lost.

Leaching method

Solvent extraction method: Crush pressed meal and feed into extractor; use n-hexane and other solvents to extract oil under specific temperature and pressure conditions. Filter miscella, separate solvent via evaporation and stripping, recycle solvent, and ensure crude oil meets solvent residue standards.

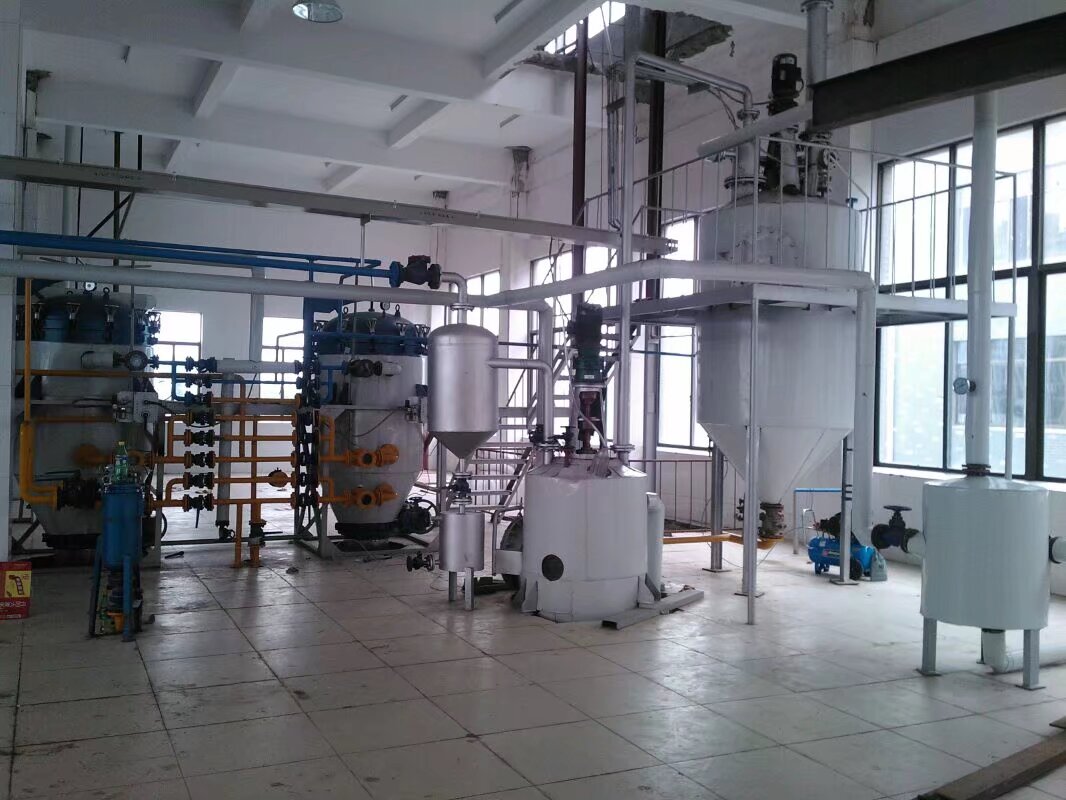

Crude oil refining
Crude oil refining
Process of Linseed Oil Production Line
  • 60 60 Degumming above [specific temperature] degrees
    Remove impurities via centrifugal or sedimentation separation to obtain degummed oil.
  • 60 60 Alkali refining and deacidification above [specific temperature] degrees
    Add a defined amount of sodium hydroxide solution to degummed oil, with dosage based on the acid value of crude oil.
  • 90 90 Decolorization above [specific temperature] degrees
    Remove impurities via centrifugal or sedimentation separation to obtain degummed oil.
  • 230 230 High - temperature deodorization at above [specific temperature] degrees
    Remove off-flavors from the oil to obtain refined flaxseed oil.
